Add M3U Playlist to TiviMate (2026): Complete Setup Guide

Overview

Knowing how to add M3U playlist TiviMate setup starts here. Adding your IPTV playlist to TiviMate is the first thing you will do after installing the app. Knowing how to add M3U playlist to TiviMate correctly saves hours of frustration after installing the app. The good news is the process takes about two minutes regardless of which method you use. There are three ways to add a playlist depending on the format your IPTV provider supports: M3U URL, Xtream Codes API, or Stalker Portal.

This guide walks through each method step by step, covers how to attach EPG data, and answers the most common questions users run into.

Before You Start: Identify Your Playlist Format

Before you add M3U playlist TiviMate, check the welcome email your IPTV provider sent when you subscribed. It will contain one of three formats. Use this table to identify which one you have:

If your provider supports Xtream Codes, choose that method. It loads channels faster, updates EPG more reliably, and provides access to Video on Demand and catch-up TV automatically without extra configuration.

Tip: Most providers support Xtream Codes which loads faster and includes automatic EPG. Ask your provider for Xtream Codes credentials instead of M3U.

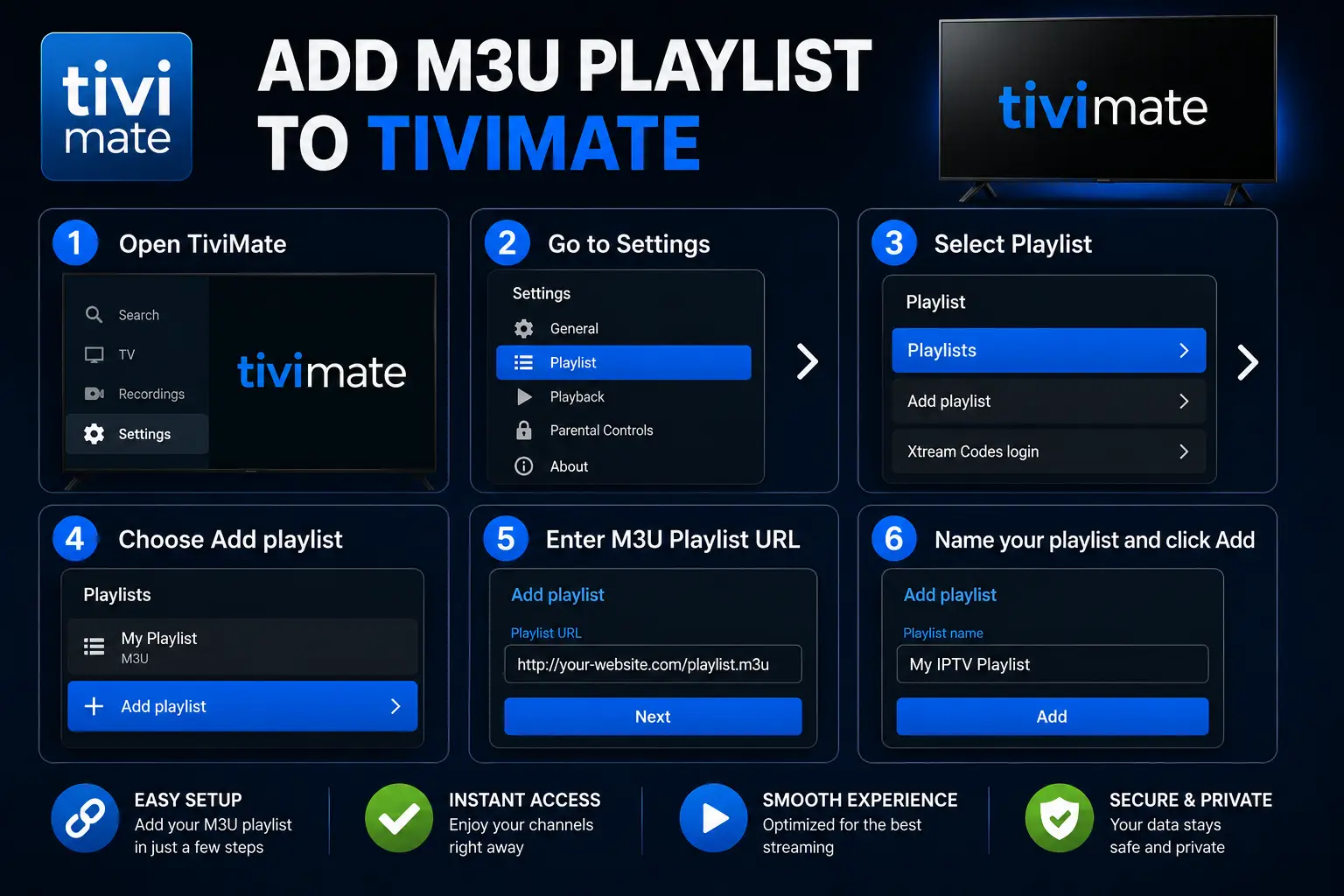

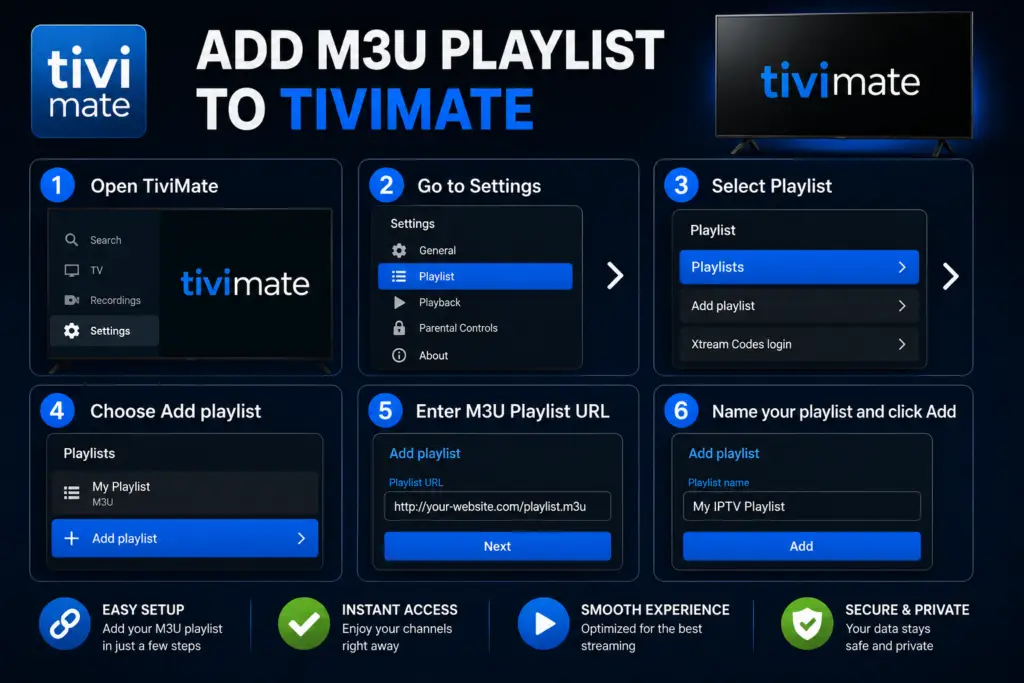

Method 1: Add M3U Playlist TiviMate via URL

The M3U URL method is the most common way to add IPTV to TiviMate. Your M3U URL will look something like http://provider.com:8080/get.php?username=abc&password=xyz&type=m3u_plus.

1. Open TiviMate on your Android TV or Firestick.
2. Select Add Playlist on the welcome screen. If you already have a playlist loaded, go to Settings > Playlist > Add Playlist.
3. Choose M3U Playlist as the format.
4. Paste the full M3U URL into the URL field. Make sure the link starts with http:// or https:// and includes your credentials.
5. Give your playlist a name so you can identify it later if you add multiple playlists.
6. Click Next and wait for TiviMate to load the channel list. This can take 10 to 30 seconds depending on the number of channels.

Once the playlist loads, TiviMate displays a preview of the channel list so you can verify everything looks correct before finalizing.

Method 2: Add a Playlist Using Xtream Codes API

Xtream Codes is the modern standard for IPTV delivery. It is faster and more reliable than M3U URLs because the server sends structured data instead of a flat text file.

1. Open TiviMate and go to Settings > Playlist > Add Playlist.
2. Select Xtream Codes API as the format.
3. Enter the Server URL or Server IP and Port your provider gave you. The format is usually http://provider.com:8080.
4. Enter your Username and Password exactly as provided. These are case-sensitive.
5. Select Next. TiviMate connects to the server and retrieves the channel list, EPG data, VOD, and series information automatically.

One major advantage of Xtream Codes is that EPG data is often included in the API response, so you may not need to add a separate EPG source.

Method 3: Add M3U Playlist TiviMate Using Stalker Portal

Stalker Portal is an older protocol used primarily by MAG set-top boxes. Some IPTV providers still use it, especially for legacy subscribers.

1. Open TiviMate and go to Settings > Playlist > Add Playlist.
2. Select Stalker Portal as the format.
3. Enter the Portal URL your provider supplied. This typically looks like http://portal.provider.com/stalker_portal/c/.
4. If your provider gave you a MAC Address, enter it in the MAC field. The format should be 00:1A:79:XX:XX:XX.
5. Click Next and allow TiviMate to authenticate with the portal server.

Stalker Portal connections can take slightly longer to authenticate than M3U or Xtream Codes. If the connection times out, double-check the portal URL and MAC address with your provider.

How to Add EPG (Electronic Program Guide) to Your Playlist

After you add M3U playlist TiviMate, EPG data gives you the program schedule for each channel. Without it, you only see channel names with no information about what is currently playing or coming up next.

1. Go to Settings > EPG > Add EPG Source in TiviMate.
2. Paste the EPG URL your provider sent. This usually ends in .xml or .gz. Example: http://provider.com:8080/xmltv.php?username=abc&password=xyz.
3. Assign the EPG source to your playlist. TiviMate asks you which playlist this EPG belongs to if you have multiple playlists.
4. Wait for the EPG data to download. Large providers with hundreds of channels may take 30 to 60 seconds to fully load.
5. Go back to the main screen and check a few channels to confirm the program guide appears.

If you used the Xtream Codes API method, check whether EPG data loaded automatically before adding a separate EPG source.

How Many Playlists Can You Add?

Once you add M3U playlist TiviMate, know that the free version supports one playlist. If you need more than one, you need the Premium version, which supports unlimited playlists on up to five devices. This is useful if you subscribe to multiple IPTV services or want to separate live TV from VOD content into different playlists.

Troubleshooting Common Playlist Issues

Next Steps After Adding Your Playlist

After you add M3U playlist TiviMate and EPG is working, take these next steps to get the most out of TiviMate:

1. Install TiviMate on all your devices. Your Premium subscription works on up to five devices. Set it up on every Android TV, Firestick, or Android device in your home so you can watch from any room. Follow the Firestick installation guide or the Android TV setup guide for step-by-step instructions.
2. Set up the TiviMate Companion app. Use your phone as a remote control. The Companion app lets you browse channels, change volume, and manage playlists without needing the original remote. Install it from the Google Play Store on your phone and pair it with your device over your local network.
3. Configure EPG for all playlists. If you added multiple playlists, assign an EPG source to each one. Go to Settings → EPG and verify that the program guide shows accurate data for every channel group. The EPG refreshes automatically every few hours, but you can force a refresh anytime from the same menu.
4. Customize your channel list. Hide channels you never watch, reorder groups, and set favorites for quick access. Go to Settings → Playlist → Manage Groups to organize your layout. Creating a streamlined channel list makes daily browsing much faster.
5. Explore advanced features. TiviMate Premium includes recording (DVR), multi-view, and catch-up TV. These features turn TiviMate into a full cable-replacement system. If you run into any issues, the troubleshooting guide covers 10 common problems and their fixes.

FAQs About Adding Playlists to TiviMate
